CUSTODY TRANSFER & FISCAL SAMPLING
SAMPLEX startJET
Dynamic Mixing with Automatic Sampling Solution
Accurate oil and water measurement is highly dependent on flow velocity. Under low-flow conditions or inconsistent flow velocities, achieving proper mixing for accurate measurement becomes impossible, which prevents real-time in-line sampling and water cut measurement in certain applications and creates challenges in many others.

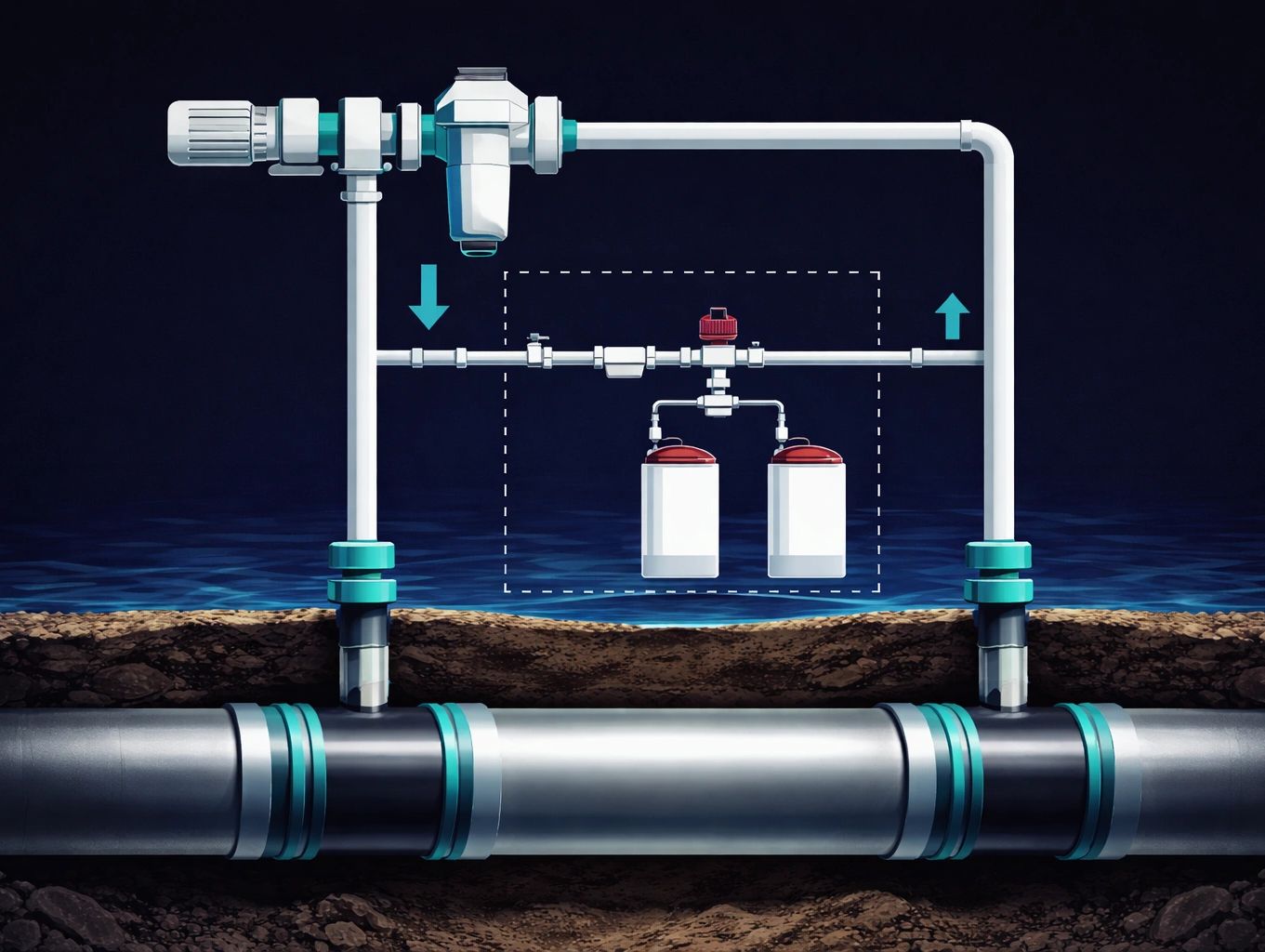

However, the design of the DYCONET StartJET™ Dynamic Mixing System creates a consistent measurement environment and maintains a constant flow velocity that meets the required conditions, regardless of the application, water concentration, fluid viscosity, or temperature.
F E A T U R E S
S P E C I F I C A T I O N S
S P E C I F I C A T I O N S
- Ensures product homogeneity in accordance with API 8.2.
- Ideal for low-flow pipelines, extra-heavy crude oil, and large-diameter pipelines.
- Maintains constant velocity, accuracy, and homogeneity.
- Suitable for operation in potentially explosive atmospheres.
- The StartJET™ Mixing System is designed according to specific process conditions and can also integrate different instrumentation based on customer requirements.
- The StartJET™ Mixing Solution can be integrated into an automatic sampling system according to the application requirements.
S P E C I F I C A T I O N S
S P E C I F I C A T I O N S
S P E C I F I C A T I O N S
- Main Mixing Pipeline Size: 2” or larger
- Sampling Loop Pipeline Size: 1”
- Sample Suction Connection: 1.5”
- Injection Connection: 1.5”
- Process Connection: RF (RTJ optional)
- Maximum Pressure Rating: ANSI 150, 300, 600, or 900
- Material of Construction: Carbon Steel
