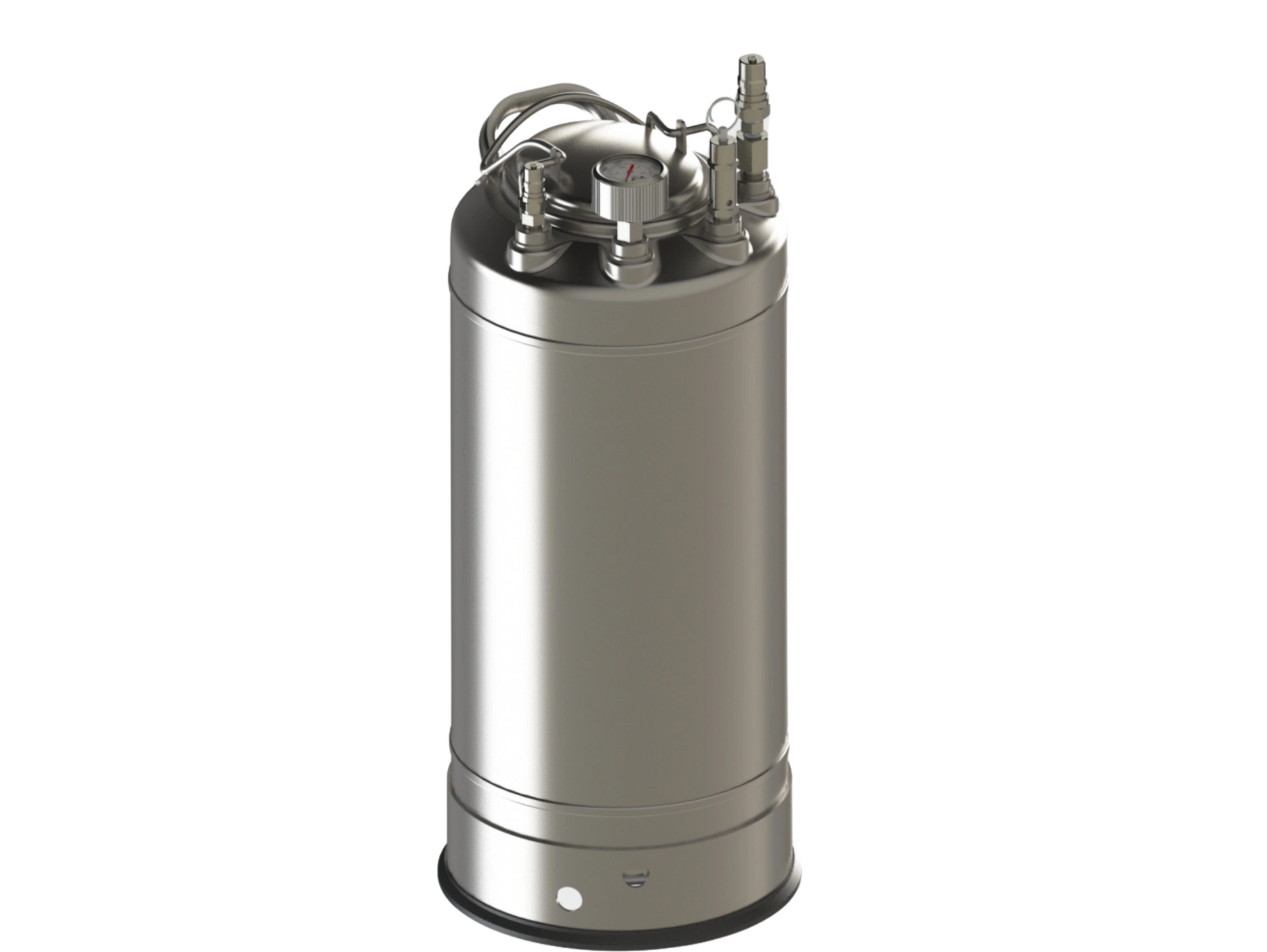

The atmospheric sample receiver line consists of portable containers made from various storage volumes and construction materials, designed for the collection of samples of crude oil batches and refined products. It includes a pressure gauge, quick connections for sample input and laboratory mixing, and a relief valve. The SAMPLEX SR line contains internal tubes for suctioning samples and for mixing using a SAMPLEX LM35 mixing pump, ensuring the homogeneity of the analysis samples.
F E A T U R E S
S P E C I F I C A T I O N S
S P E C I F I C A T I O N S
- Rounded background without dead spots that divert the sample.
- Easy-open lid with a seal for the airtight storage of the sample.
- Internal spray bar for mixing with the laboratory pump and keeping the sample homogeneous at the time of analysis.
- Integrated relief valve to protect the receiver from overpressure.
- Pressure indication on site.
- Quick connection ports according to ISO 7241 series B.
- Stamped with ASME code.
S P E C I F I C A T I O N S
S P E C I F I C A T I O N S
S P E C I F I C A T I O N S
- Applications: Collection of stable or stratified products under atmospheric conditions
- Construction materials: 304/304L stainless steel receiver (optional in 316/316L), 316 stainless steel hydraulic connectors, Viton top cover o-ring with PTFE encapsulation
- Maximum operating pressure: 9.8 bar (142 psi) and relief valve at 2 bar (30 psi)
- Volume: 11.3 liters (3 gallons); 18.9 liters (5 gallons); 37.8 liters (10 gallons)
- Inlet connection: 1/4" ISO-B (Hydraulic quick connection)
- Output connection: 3/8" ISO-B (Hydraulic quick connection)
- Accessories: Pressure gauge, adjustable check valve to 2 bar (30 psig)
- Optional: Float type level switch or bimetallic thermometer
