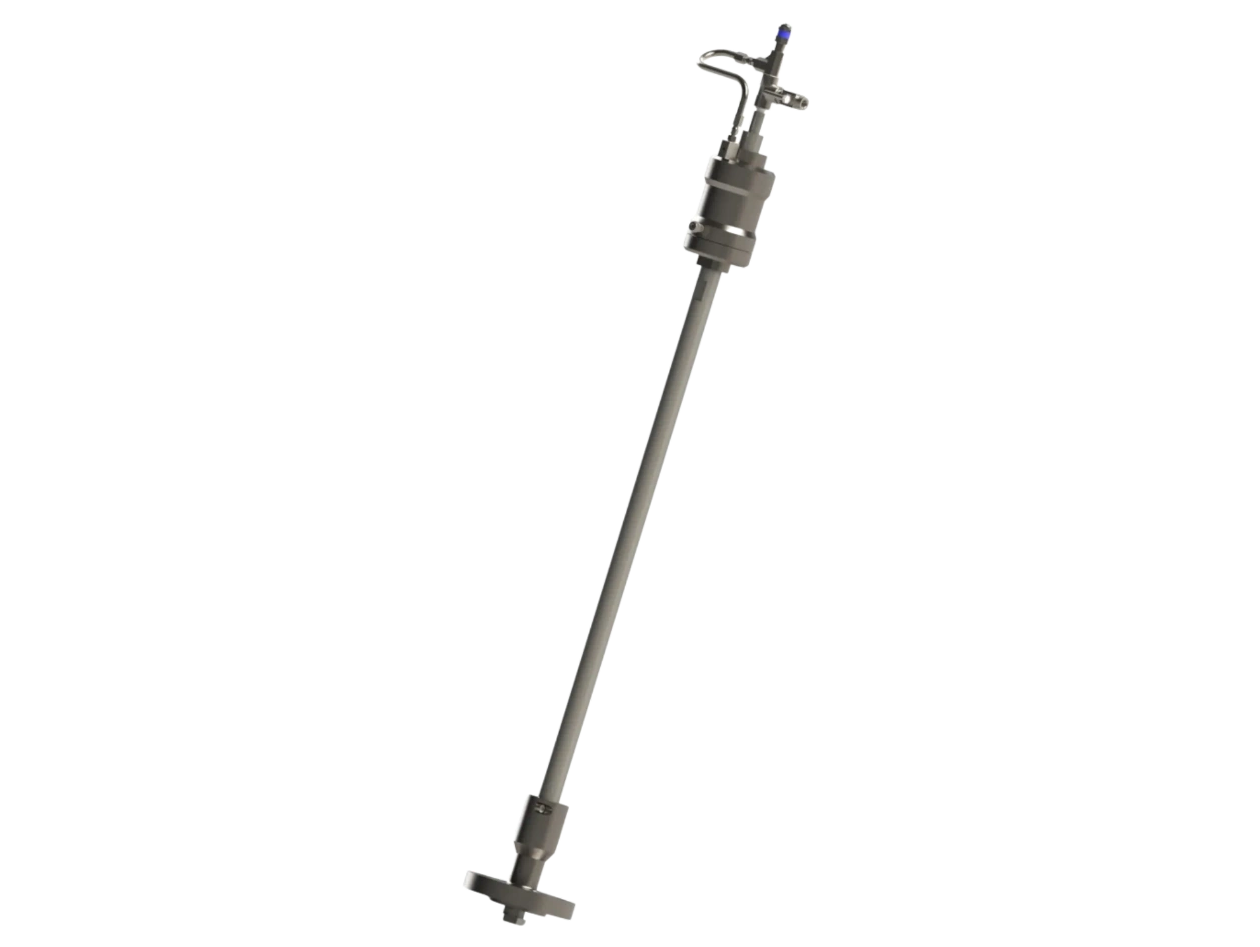

The SAMPLEX™ SP15 Liquid Sampling Probe is an ideal device for extracting samples from an in-line process pipeline without interrupting operations. Whether for crude oil or condensate products, the SAMPLEX™ SP15 can be installed on large-diameter pipelines and used in complex sampling applications, ensuring proper performance even in the most demanding process or environmental conditions. The SAMPLEX® SP15 solution offers the advantage of greater cost-effectiveness throughout its service life and complies with API MPMS 8.2, ASTM D3177, and ISO 3171 standards.
Features
Specifications
Specifications
- Single-drive piston motor that facilitates on-site commissioning.
- The piston motor includes an internal safety spring, which returns the probe to its original position when external power is not available.
- The probe can be manually inserted using the SAMPLEX™ insertion tool.
- Easy adjustment of the insertion length into the process pipeline.
- All wetted parts and components are made of 316/316L stainless steel.
- Equipped with an integrated external relief valve to adjust to the process line pressure range.
- Pumping capacity suitable for sampling high-viscosity products.
Specifications
Specifications
Specifications
- Fluids to sample: Crude oil, refined products, and non-corrosive chemicals
- Viscosity range: 1 – 1500 cSt
- Ambient temperature range: -20 to 65 °C (-4 to 149 °F)
- Construction materials: 316/316L stainless steel, PEEK (wetted parts)
- Fluid temperature: -40 to 100 °C (-40 to 212 °F)
- Power supply: Pneumatic or hydraulic
- Sample size: 0.5, 1, 1.5, or 2 cc
- Repeatability: Better than API MPMS 8.2
- Process connection: ANSI RF flange (optional RTJ)
- Pressure rating: ANSI 150, 300, 600, or 900
- Process pipe size: 1” to 52”
