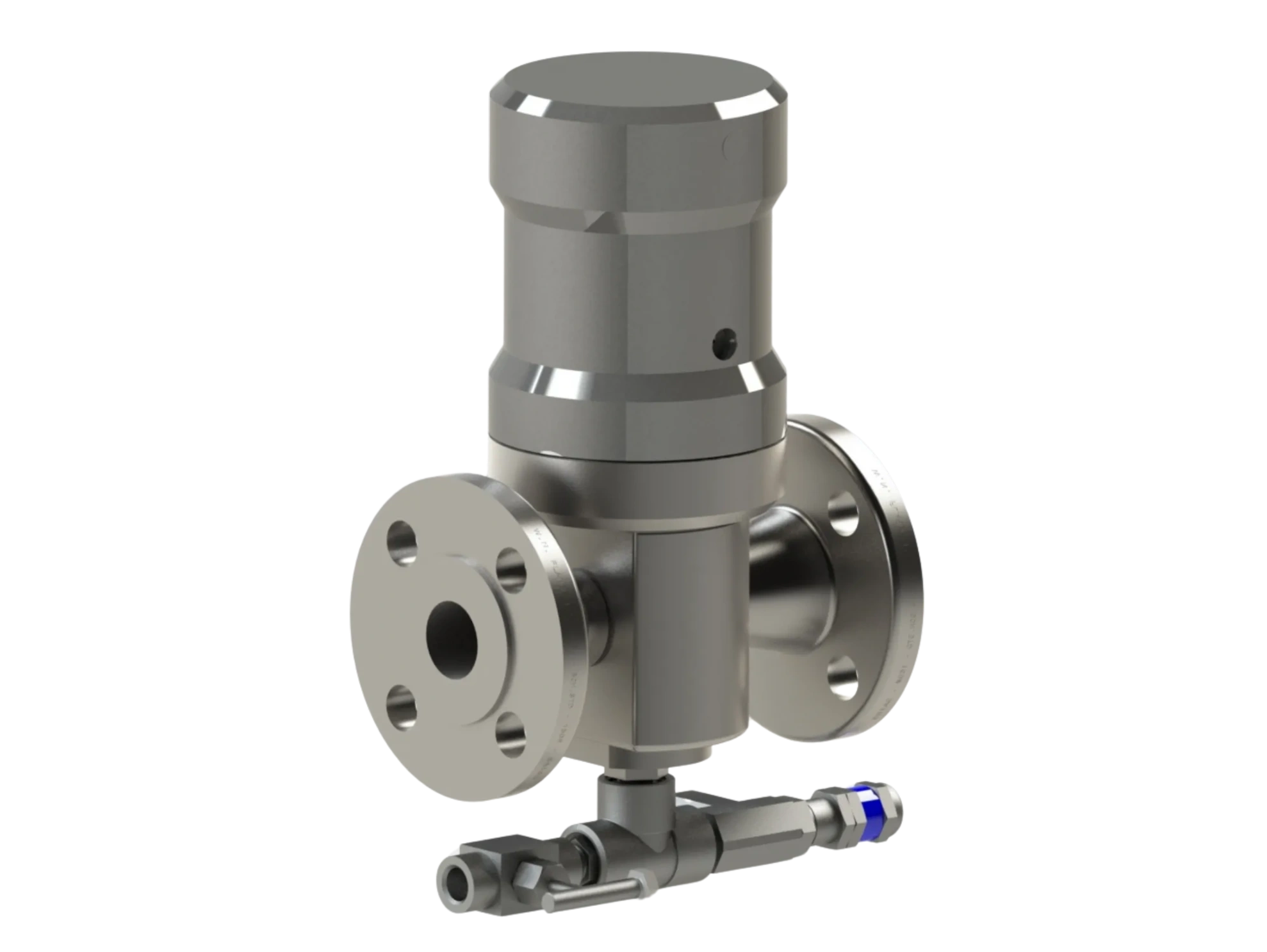

The SAMPLEX™ SC15 Liquid Sampling Cell is an ideal device for extracting samples from a loop-type sampling system with pipeline diameters ranging from 1” to 2”. Whether handling crude oil or condensate products, the SAMPLEX™ SC15 is a compact, easy-to-maintain unit capable of operating in complex sampling applications, ensuring reliable performance even under the most demanding process or environmental conditions. The SAMPLEX® SC15 solution offers the advantage of greater cost-effectiveness throughout its service life and complies with API MPMS 8.2, ASTM D3177, and ISO 3171 standards.
Features
Specifications
Specifications
- Single-drive piston motor that facilitates on-site commissioning.
- The piston motor includes an internal safety spring that automatically returns the probe to its original position when external power is not available.
- Various mounting options for process installation.
- Compact and easy-to-maintain design for extended service life.
- All components are made of 316/316L stainless steel.
- Integrated external relief valve for adjustment to process line pressure range.
- Pumping power capable of sampling high-viscosity products.
Specifications
Specifications
Specifications
- Fluids to sample: Crude oil, refined products, and non-corrosive chemicals
- Viscosity range: 1 – 1500 cSt
- Ambient temperature range: -20 to 65 °C (-4 to 149 °F)
- Construction materials: 316/316L stainless steel, PEEK (wetted parts)
- Fluid temperature: -40 to 100 °C (-40 to 212 °F)
- Power supply: Pneumatic or hydraulic
- Sample size: 0.5, 1, 1.5, or 2 cc
- Repeatability: Better than API MPMS 8.2
- Process connection: ANSI RF flange (optional RTJ)
- Pressure rating: ANSI 150, 300, 600, or 900
- Process pipe size: 1”, 1½”, or 2”
