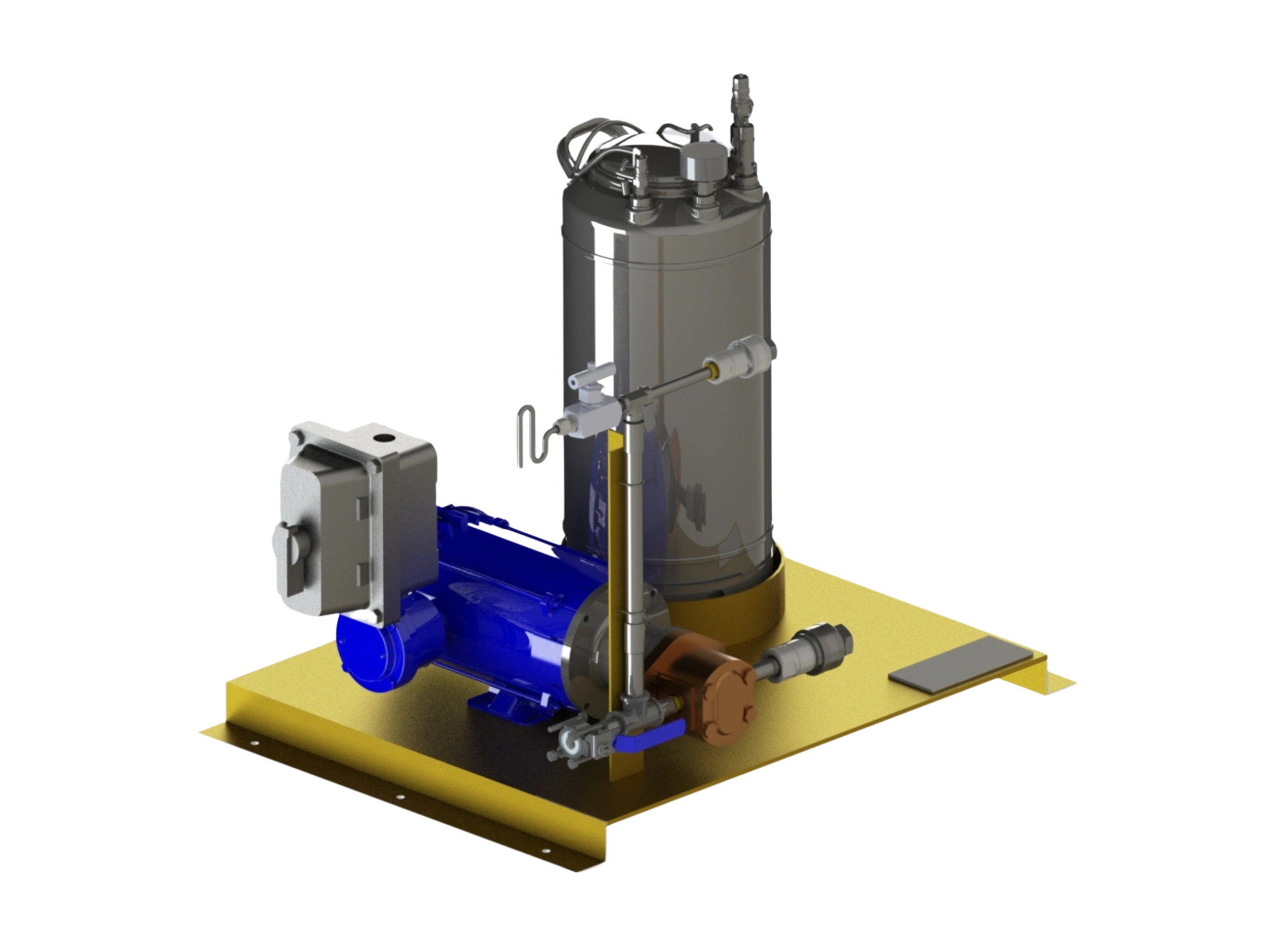

SAMPLEX LM35

F E A T U R E S

S P E C I F I C A T I O N S

S P E C I F I C A T I O N S

Electric motor rated for operation in potentially explosive atmospheres.
Flexible hydraulic hoses with ISO-B quick-connect couplings for easy and efficient connections.
Retaining ring to securely hold SAMPLEX™ SR sample receivers during mixing or cleaning operations for enhanced safety.
Needle outlet valve for collecting samples directly from the mixing process.
Integrated gear pump.
Includes an integrated SAMPLEX™ SMs static mixer as part of the complete system.
Designed in accordance with API 8.2 and ASTM D5854 standards.
Optional integration of a heating system unit for a SAMPLEX™ SR sample container.

S P E C I F I C A T I O N S

S P E C I F I C A T I O N S

S P E C I F I C A T I O N S

Applications: Mixing and cleaning of SAMPLEX™ SR atmospheric sample receivers.
Materials of Construction: Carbon steel base with 317/316L stainless steel fittings and connections.
Maximum Allowable Operating Pressure: 13 barg from -20 to 37 °C.
Connections: ½” ISO-B discharge, ¾” ISO-B suction, ½” FNPT drain, ¼” FNPT sample port.
Power Supply: 110 VAC / 220 VAC, ¾” FNPT electrical connections. 110 VAC / 220 VAC for heater (optional).
Motor Rating: ½ HP (standard). ¾ HP (optional for higher viscosity product applications).
Electrical Classification: Explosion-proof.
